Suspended spot luminaire made of aluminium with a diameter of 65 and 100mm, coated with epoxy powder in one of the following colors: black or white. It contains a COB LED light source, MacAdam3, CRI90, 3CCT, the possibility of changing the light temperature on the luminaire 3000, 4000 or 5000K. Optics 36° or 60°. Suspension cable length 100cm. 5-year lamp warranty.
| SUPPLY | 230V |
| IP CODE | IP20 |
| ELECTRICALPROTECTIONCLASS | I |
| SDCM | <3 |
| EFFICIENCY | do 110lm/W |
| COLOUR RENDERING INDEX | CRI >90 |
| LED LIFESPAN | 50000h |
| POWER FACTOR | 0.9 |
| UGR | <19 (36°), <22 (60°) |
| OPTICS | 36° & 60° |
| OPTICS MATERIAL | PMMA |
| MATERIAL OF BODY | ALUMINIUM |
| MOUNTING VERSION | CEILING (1) SUSPENDED (2) |

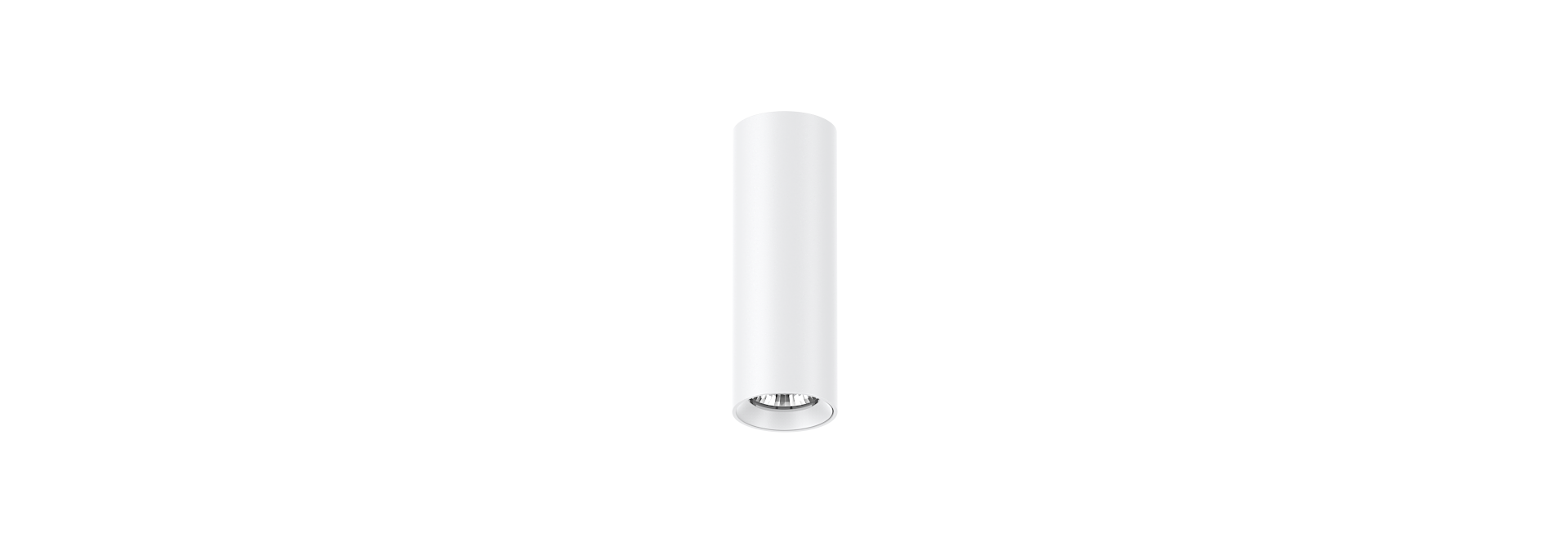

CEILING
LEDSUS ⌀65 36°
| TYPE | DIMENSIONS | LUMEN | CODE |
| LEDSUS ⌀65 LED 10W 36° 3CCT | ⌀65x180mm | 900 | 751-23CCT1B-65-10-36° |
| LEDSUS ⌀65 LED 12W 36° 3CCT | ⌀65x180mm | 1050 | 751-23CCT1B-65-12-36° |
| LEDSUS ⌀65 LED 15W 36° 3CCT | ⌀65x180mm | 1200 | 751-23CCT1B-65-15-36° |
LEDSUS ⌀65 60°
| TYPE | DIMENSIONS | LUMEN | CODE |
| LEDSUS ⌀65 LED 10W 60° 3CCT | ⌀65x180mm | 900 | 751-23CCT1B-65-10-60° |
| LEDSUS ⌀65 LED 12W 60° 3CCT | ⌀65x180mm | 1050 | 751-23CCT1B-65-12-60° |
| LEDSUS ⌀65 LED 15W 60° 3CCT | ⌀65x180mm | 1200 | 751-23CCT1B-65-15-60° |
LEDSUS ⌀100 36°
| TYPE | DIMENSIONS | LUMEN | CODE |
| LEDSUS ⌀100 LED 25W 36° 3CCT | ⌀100x220mm | 2850 | 751-23CCT1B-100-25-36° |
| LEDSUS ⌀100 LED 30W 36° 3CCT | ⌀100x220mm | 3300 | 751-23CCT1B-100-30-36° |
| LEDSUS ⌀100 LED 35W 36° 3CCT | ⌀100x220mm | 3800 | 751-23CCT1B-100-35-36° |
LEDSUS ⌀100 60°
| TYPE | DIMENSIONS | LUMEN | CODE |
| LEDSUS ⌀100 LED 25W 60° 3CCT | ⌀100x220mm | 2850 | 751-23CCT1B-100-25-60° |
| LEDSUS ⌀100 LED 30W 60° 3CCT | ⌀100x220mm | 3300 | 751-23CCT1B-100-30-60° |
| LEDSUS ⌀100 LED 35W 60° 3CCT | ⌀100x220mm | 3800 | 751-23CCT1B-100-35-60° |

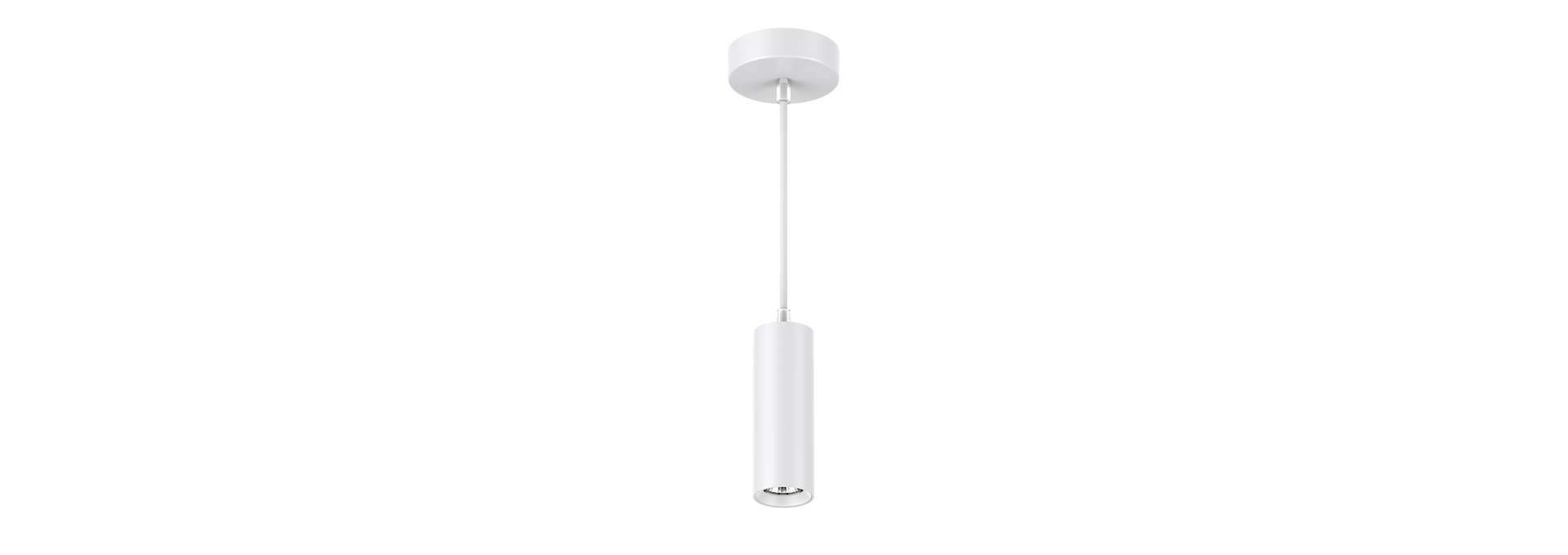

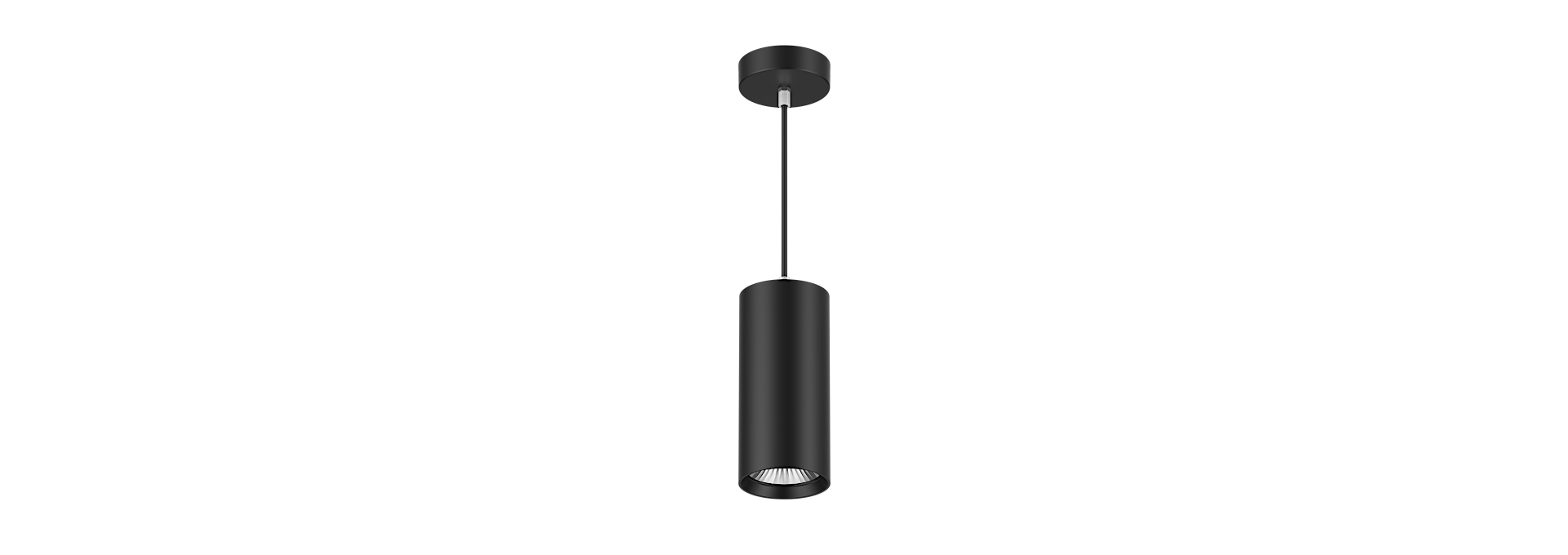

SUSPENDED
LEDSUS 2 ⌀65 36°
| TYPE | DIMENSIONS | LUMEN | CODE |
| LEDSUS 2 ⌀65 LED 10W 36° 3CCT | ⌀65x180mm | 900 | 751-43CCT1B-65-10-36° |
| LEDSUS 2 ⌀65 LED 12W 36° 3CCT | ⌀65x180mm | 1050 | 751-43CCT1B-65-12-36° |
| LEDSUS 2 ⌀65 LED 15W 36° 3CCT | ⌀65x180mm | 1200 | 751-43CCT1B-65-15-36° |
LEDSUS 2 ⌀65 60°
| TYPE | DIMENSIONS | LUMEN | CODE |
| LEDSUS 2 ⌀65 LED 10W 60° 3CCT | ⌀65x180mm | 900 | 751-43CCT1B-65-10-60° |
| LEDSUS 2 ⌀65 LED 12W 60° 3CCT | ⌀65x180mm | 1050 | 751-43CCT1B-65-12-60° |
| LEDSUS 2 ⌀65 LED 15W 60° 3CCT | ⌀65x180mm | 3800 | 751-43CCT1B-65-15-60° |
LEDSUS 2 ⌀100 36°
| TYPE | DIMENSIONS | LUMEN | CODE |
| LEDSUS 2 ⌀100 LED 25W 36° 3CCT | ⌀100x220mm | 2850 | 751-43CCT1B-100-25-36° |
| LEDSUS 2 ⌀100 LED 30W 36° 3CCT | ⌀100x220mm | 3300 | 751-43CCT1B-100-30-36° |
| LEDSUS 2 ⌀100 LED 35W 36° 3CCT | ⌀100x220mm | 3800 | 751-43CCT1B-100-35-36° |
LEDSUS 2 ⌀100 60°
| TYPE | DIMENSIONS | LUMEN | CODE |
| LEDSUS 2 ⌀100 LED 25W 60° 3CCT | ⌀100x220mm | 2850 | 751-43CCT1B-100-25-60° |
| LEDSUS 2 ⌀100 LED 30W 60° 3CCT | ⌀100x220mm | 3300 | 751-43CCT1B-100-30-60° |
| LEDSUS 2 ⌀100 LED 35W 60° 3CCT | ⌀100x220mm | 3800 | 751-43CCT1B-100-35-60° |
